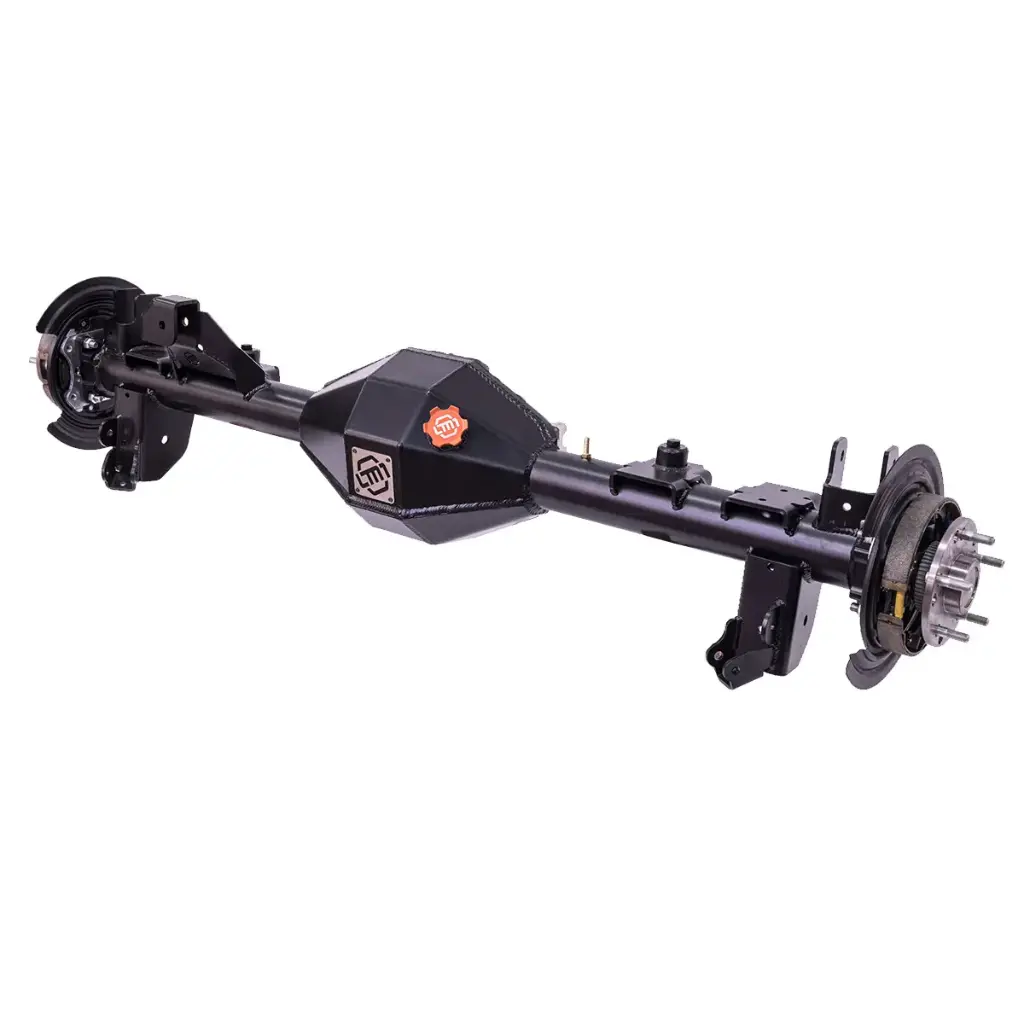

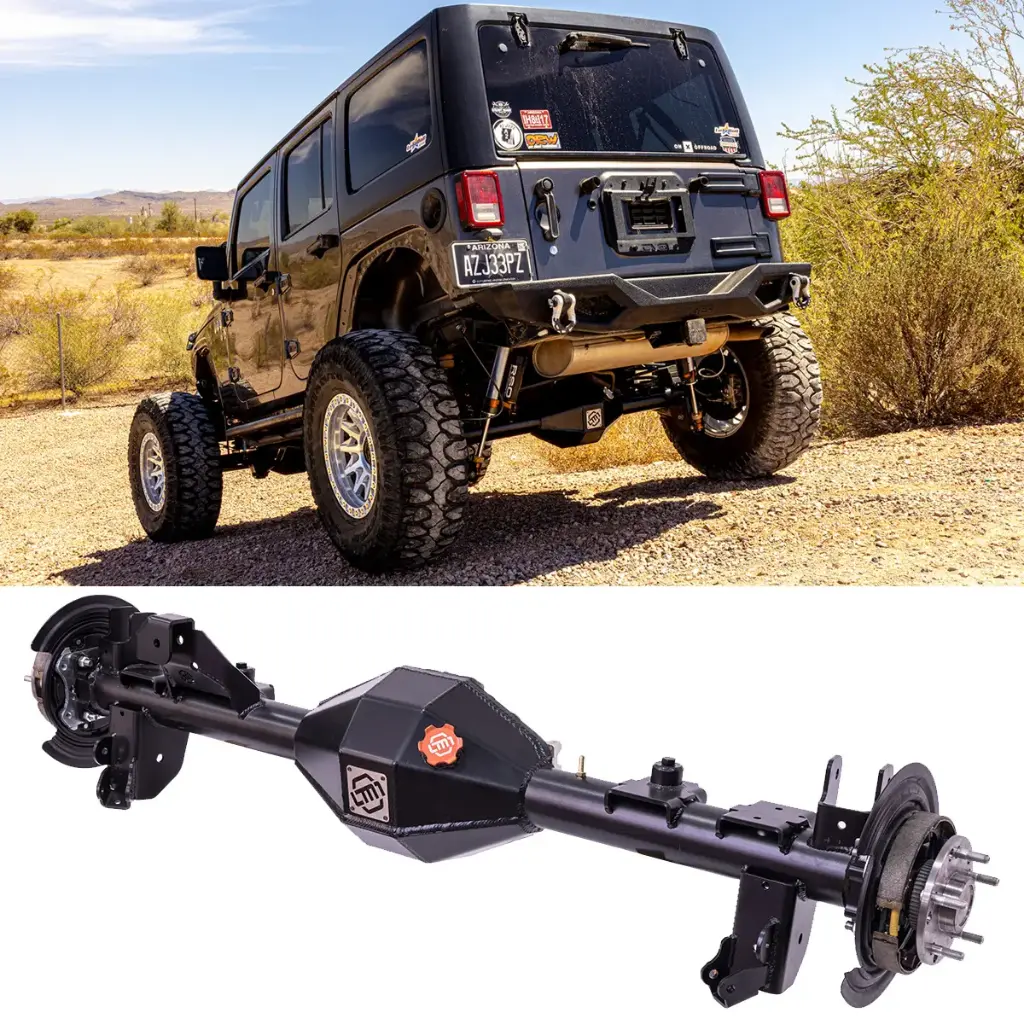

LM1 9" Fabricated Axle
LM1 is proud to introduce our all new 9 inch fabricated axle. The LM1 9” axle is designed to be a direct bolt in to your factory or most aftermarket suspension systems. This axle will reuse your factory (or most aftermarket) suspension arms, shocks, ABS sensors, brakes, wheels, and hardware (note that the drive shaft does require modifications). This saves you from the added expense of having to upgrade your wheels, brakes, and other components. Note that a new drive-shaft is required.
The fabricated 9 offers a tremendous improvement in strength and durability over the stock axels along with a slight increase in ground clearance and a reduction in un-sprung weight.
Durability

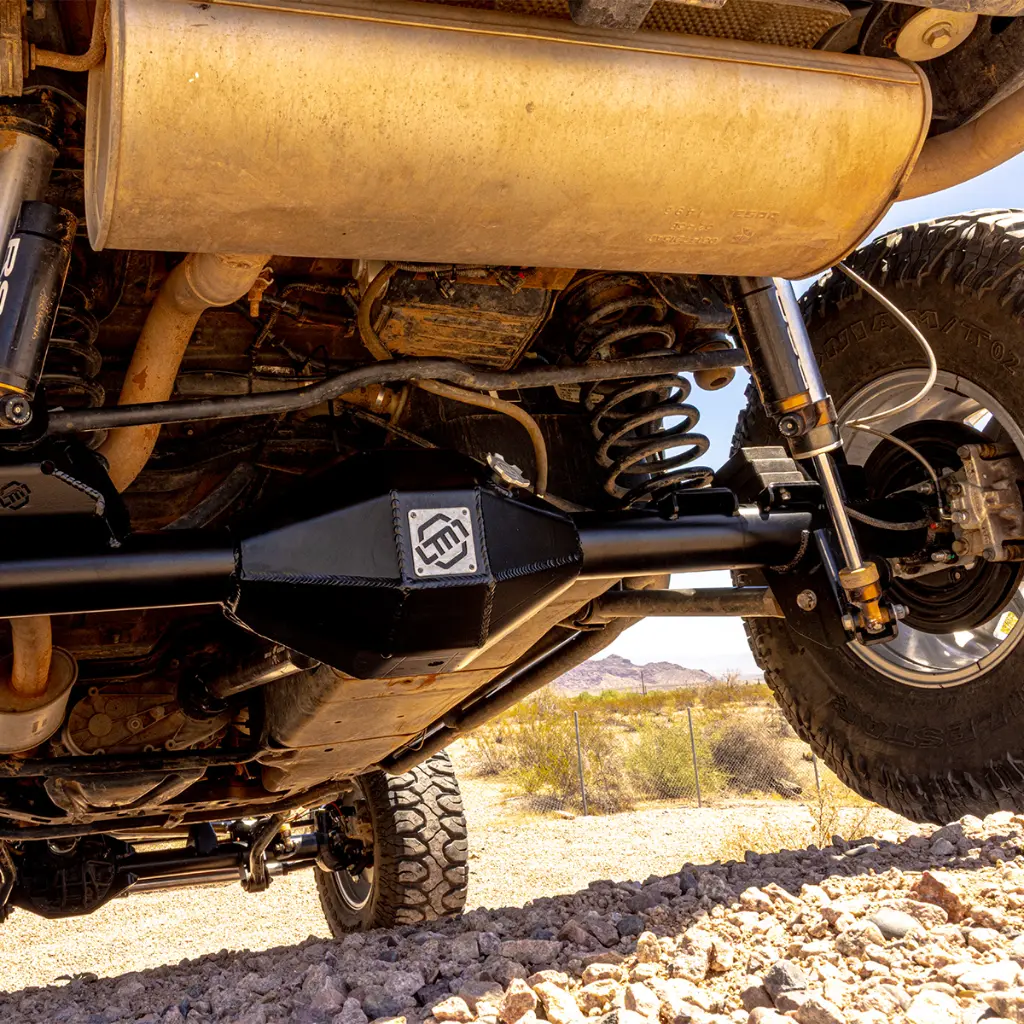

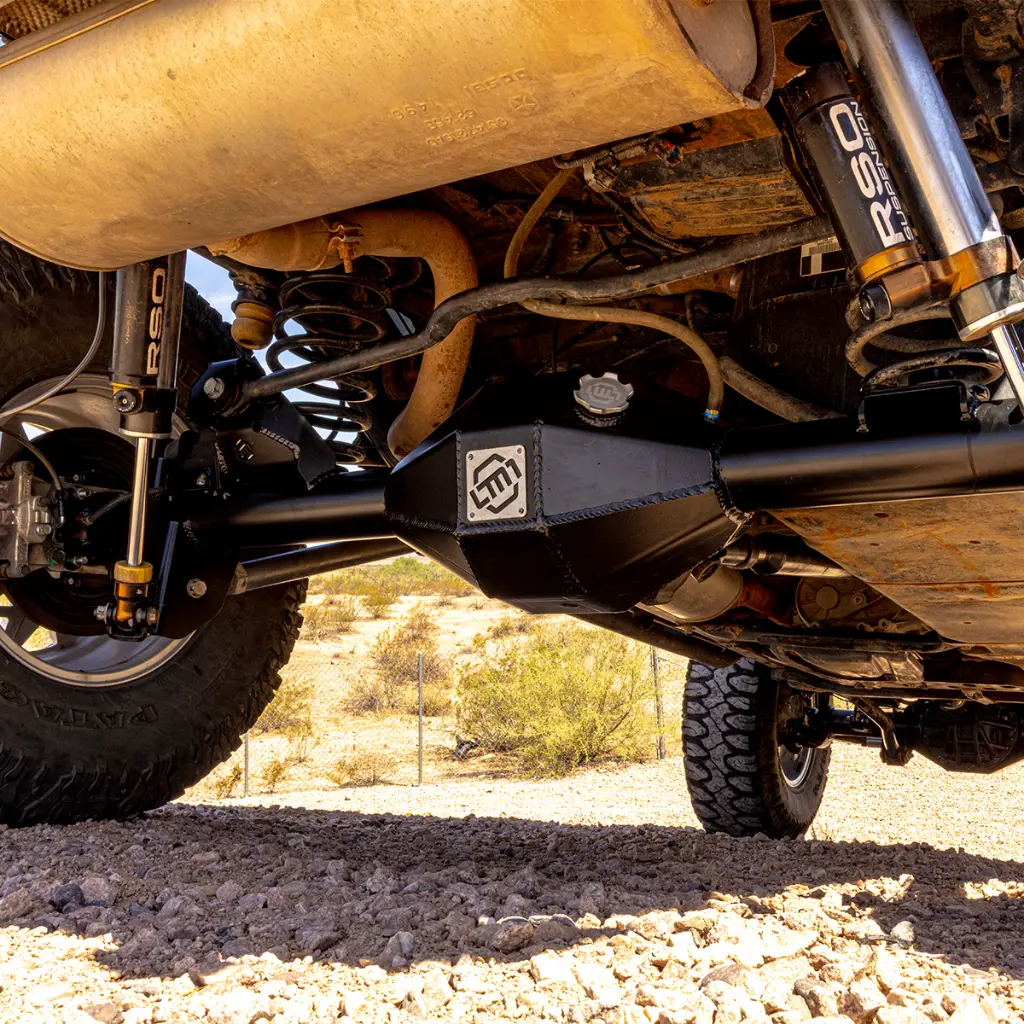

The LM1 fabricated 9” is built to withstand the toughest conditions and punishment you can put them in. We offer a 3 ½ inch outer diameter, 3/8 inch DOM axle tube. The center pumpkin bolsters a ½ inch face plate with ½ inch lower outer shell. The face plate is machined after fabrication is complete to ensure perfect alignment with the outer bearings and seals to the third member along with providing a flat sealing and seating surface for the third member. For additional structural support, the axle tubes are internally gusseted to the pumpkin walls.
LM1 9" Offerings
· 3 ½ inch OD, 3/8 inch wall thickness axle tube - standard
· ½ inch CNC machined face plate - standard
· ½ inch lower pumpkin wall – standard
· ½ inch drain plug – standard

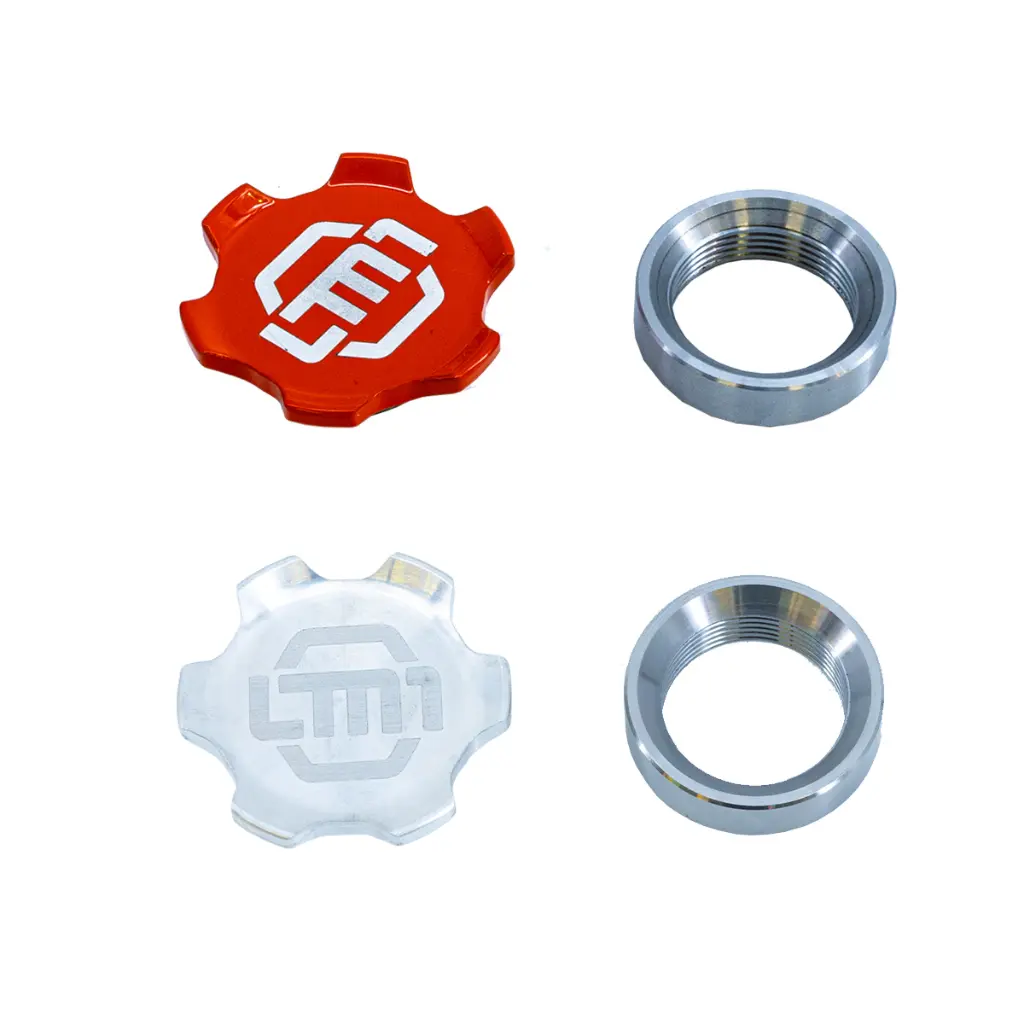

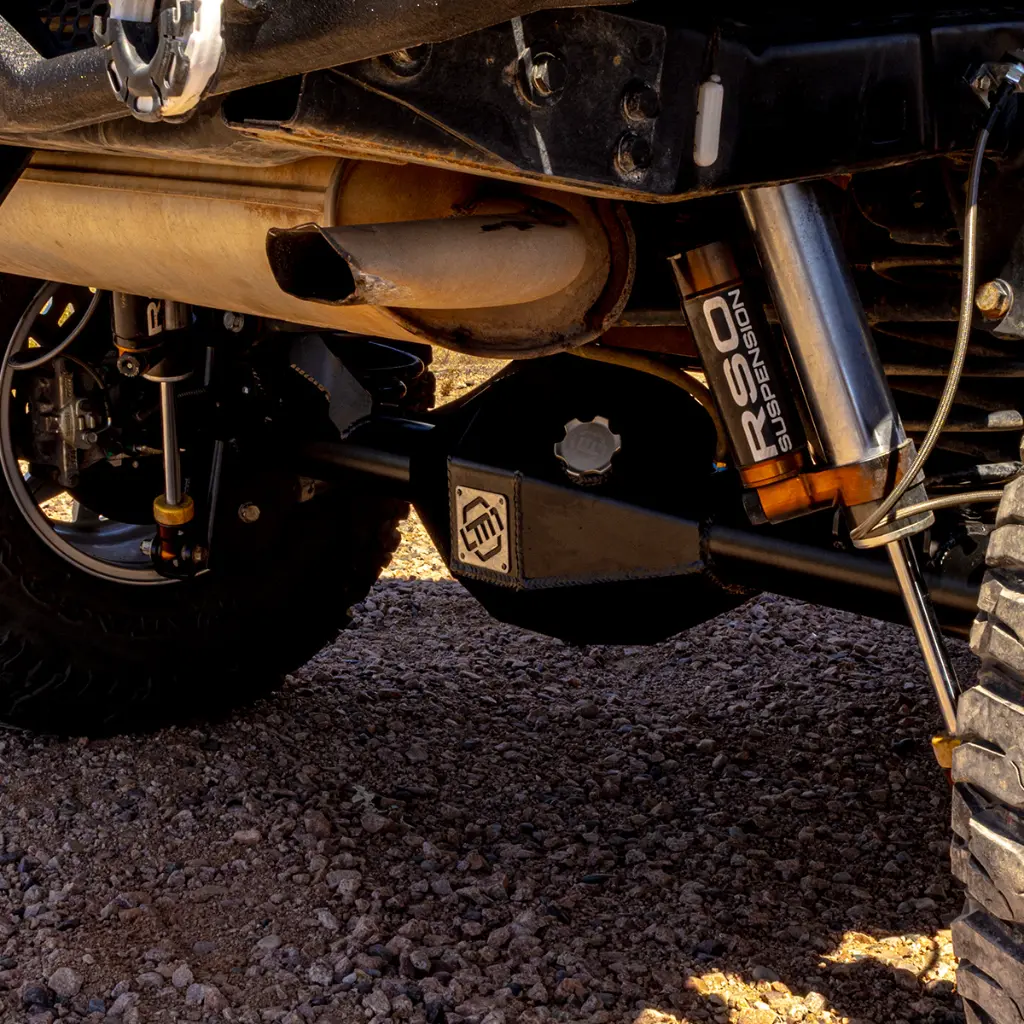

· Oil filling bung – standard
· Clearance for up to a 10” gear set – standard
· Set 80 CNC machined bearing blocks – standard
· Axle width options: stock, stock + 2 inch, stock + 4 inch
LM1 9" Build Offerings

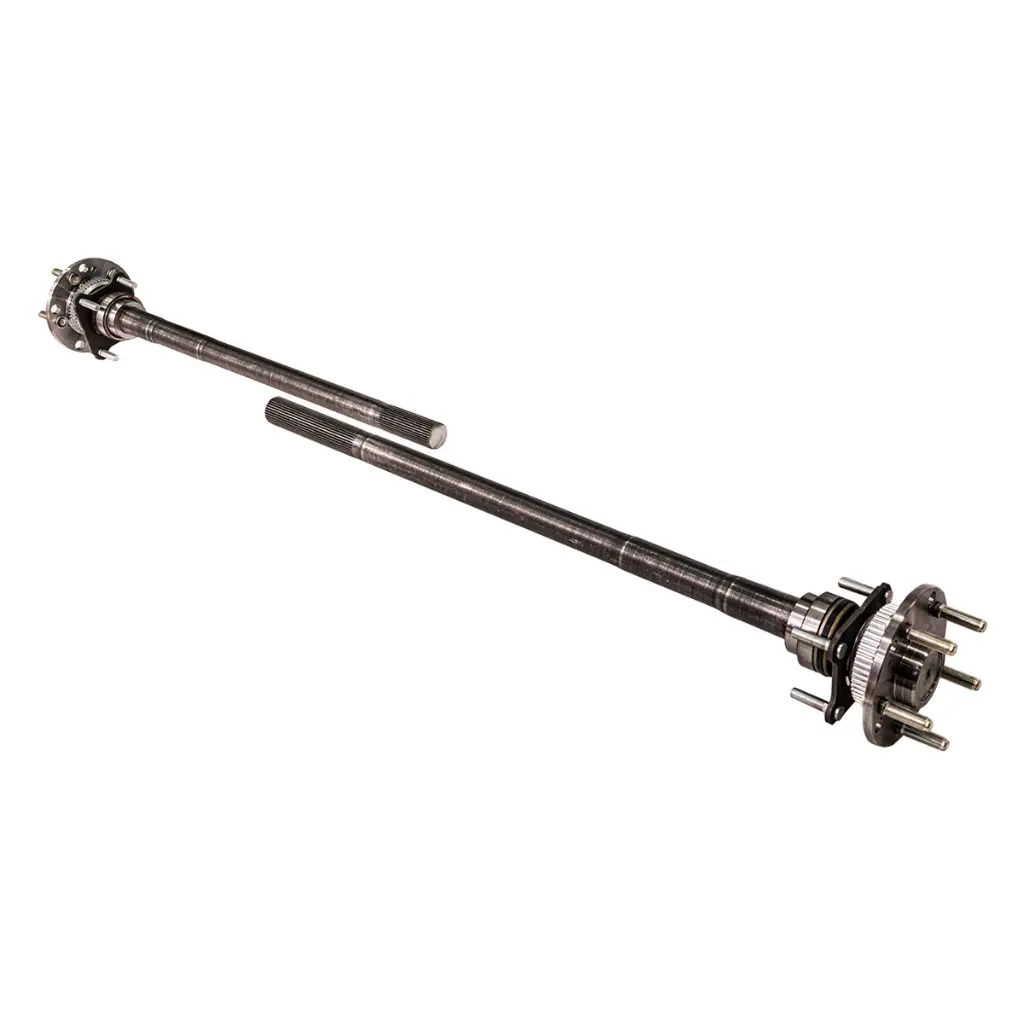

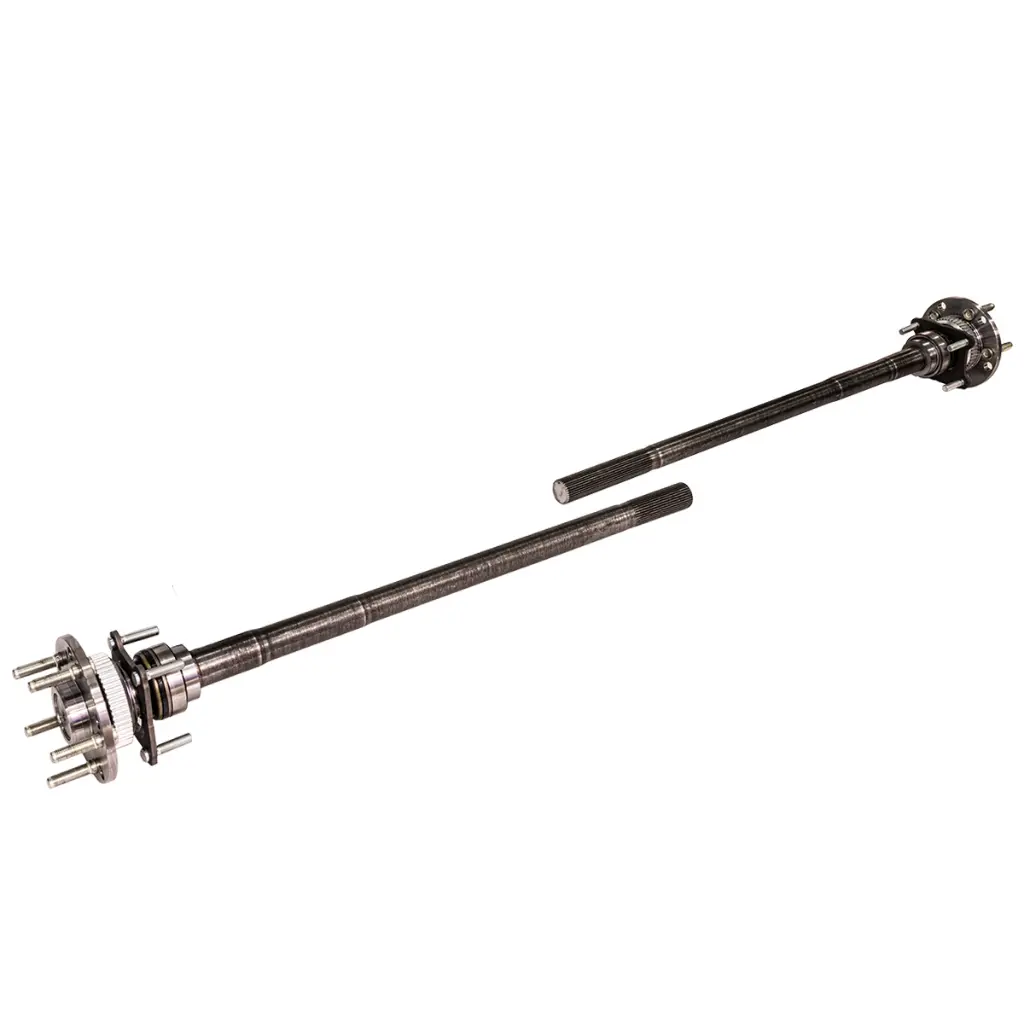

· 1.5 inch, 35 spline, 4340 chromoly axle shafts
· Lug pattern is 5 on 5 with included options of 5 on 5.5
· ARB air locker RD99
· Gear ratio choices: 4.10, 4.56, 4.86, 5.13, 5.43 (other options are available upon request)
· Yukon nodular iron third member (Gearworks 10" and high-pinion options available upon request)
· Daytona pinion bearing support
· 1350 universal joint
· 9 inch ring & pinion (optional upgrade Gearworks 10", contact us for details and pricing)
Our fabricated 9s take about six weeks to process, but lead-times are subject to change. Please Contact Us today to set up your build and order.
Custom Builds?
We have all the parts and recourses to make custom 9" axles, we're actually very good at it. Buggy guys are already all over this option. Give us a call, whatever you want we can make it!
