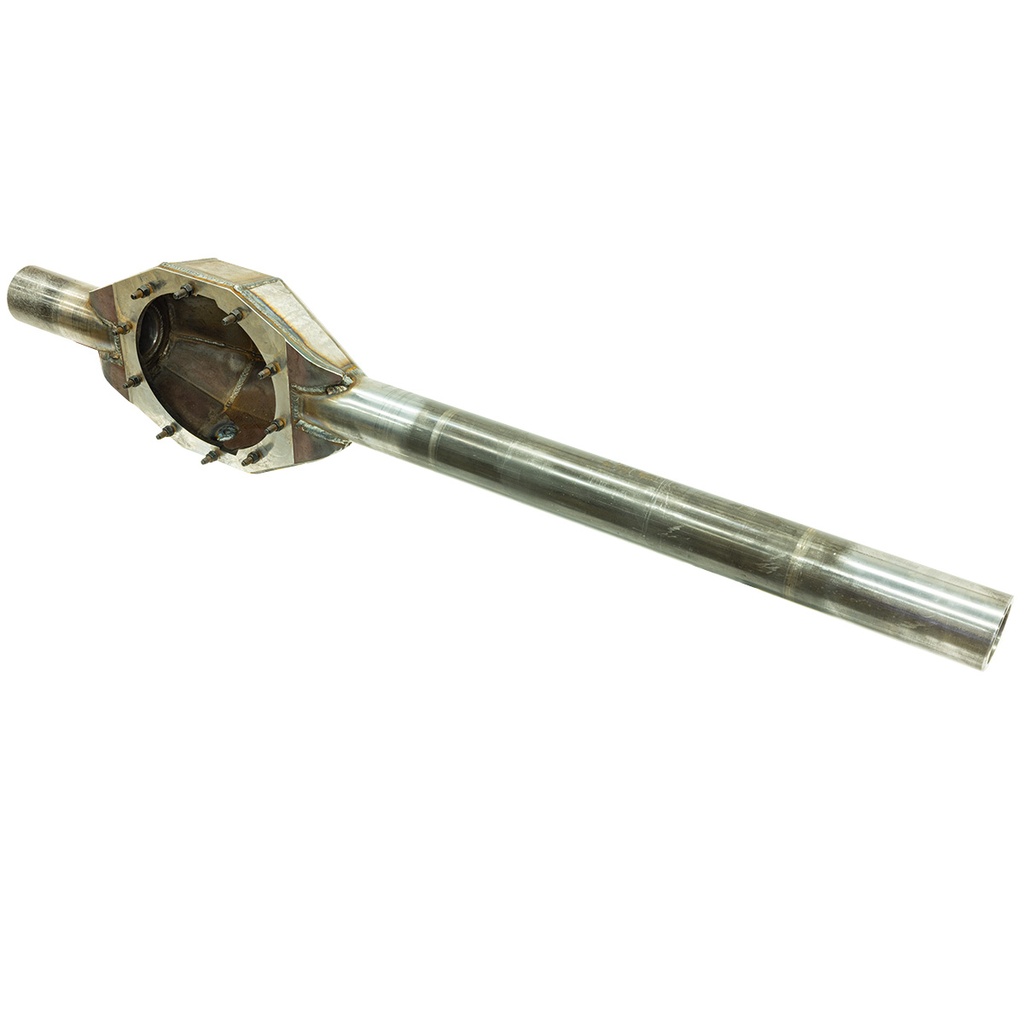

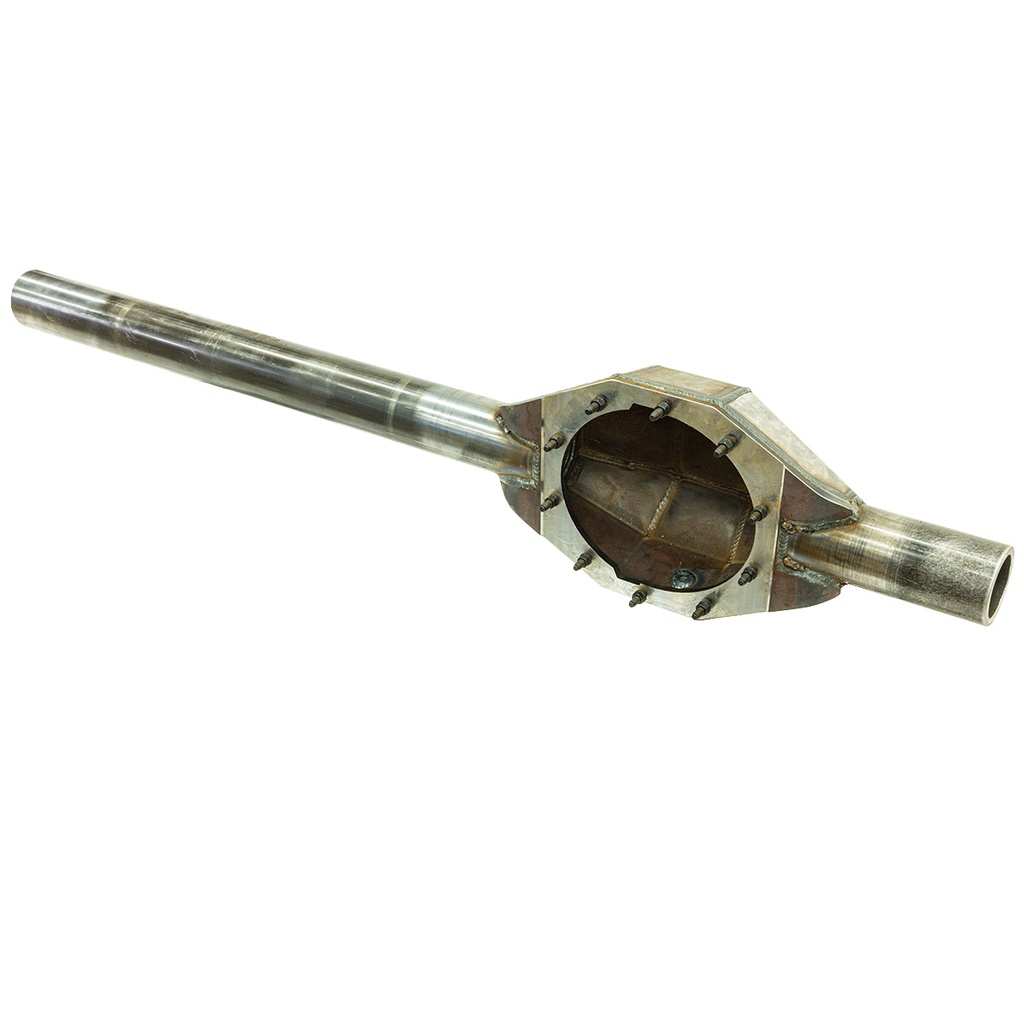

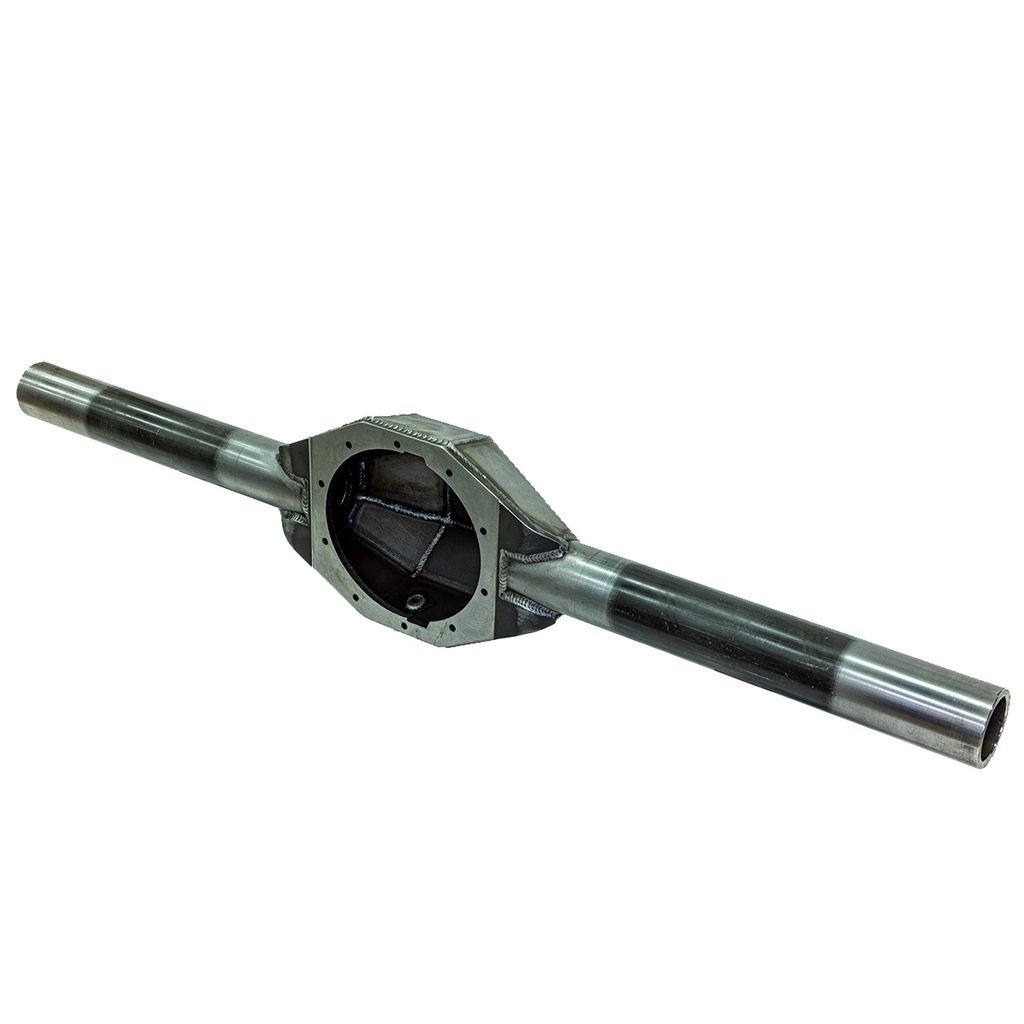

AXLE, 9in, Bare
Axle housing have 3.5 x 3/8 DOM tubes / 1/2" Face Plate / and Includes:

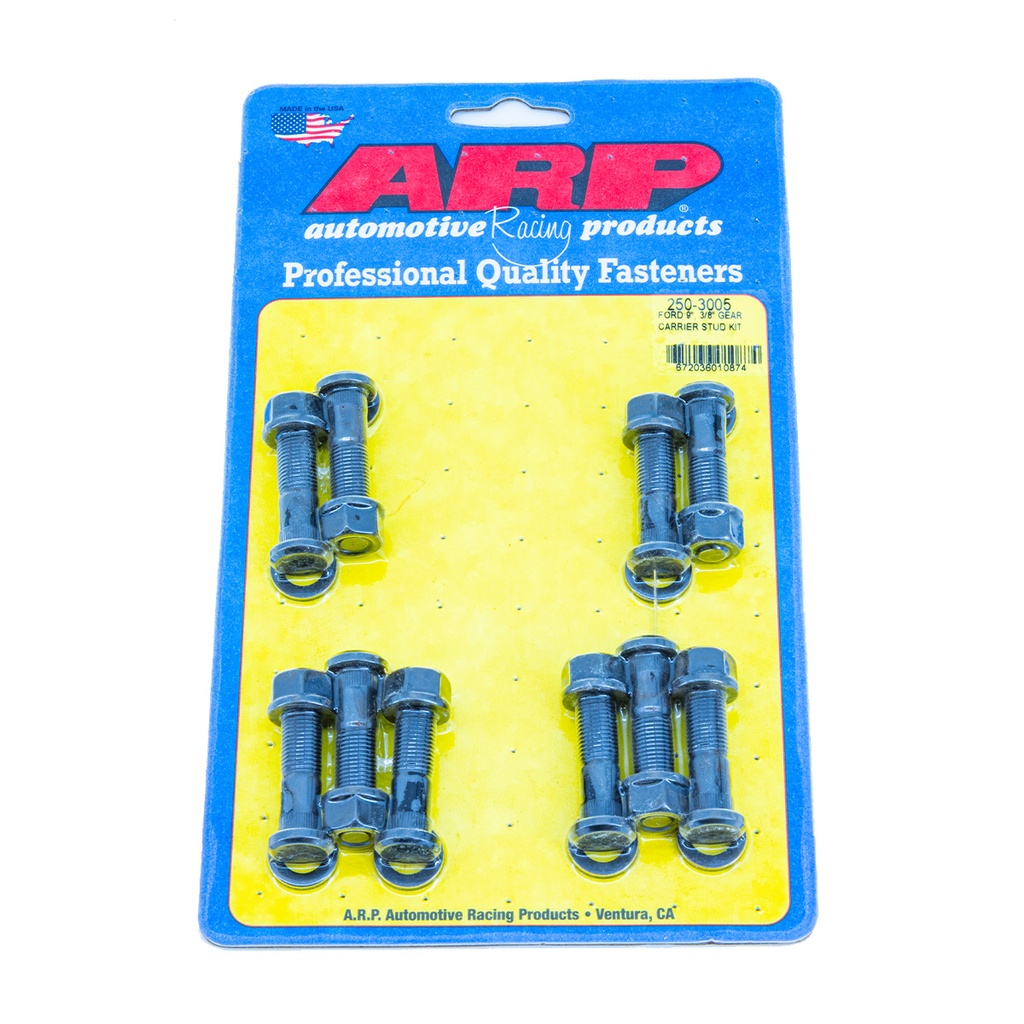

• ARP Hardware

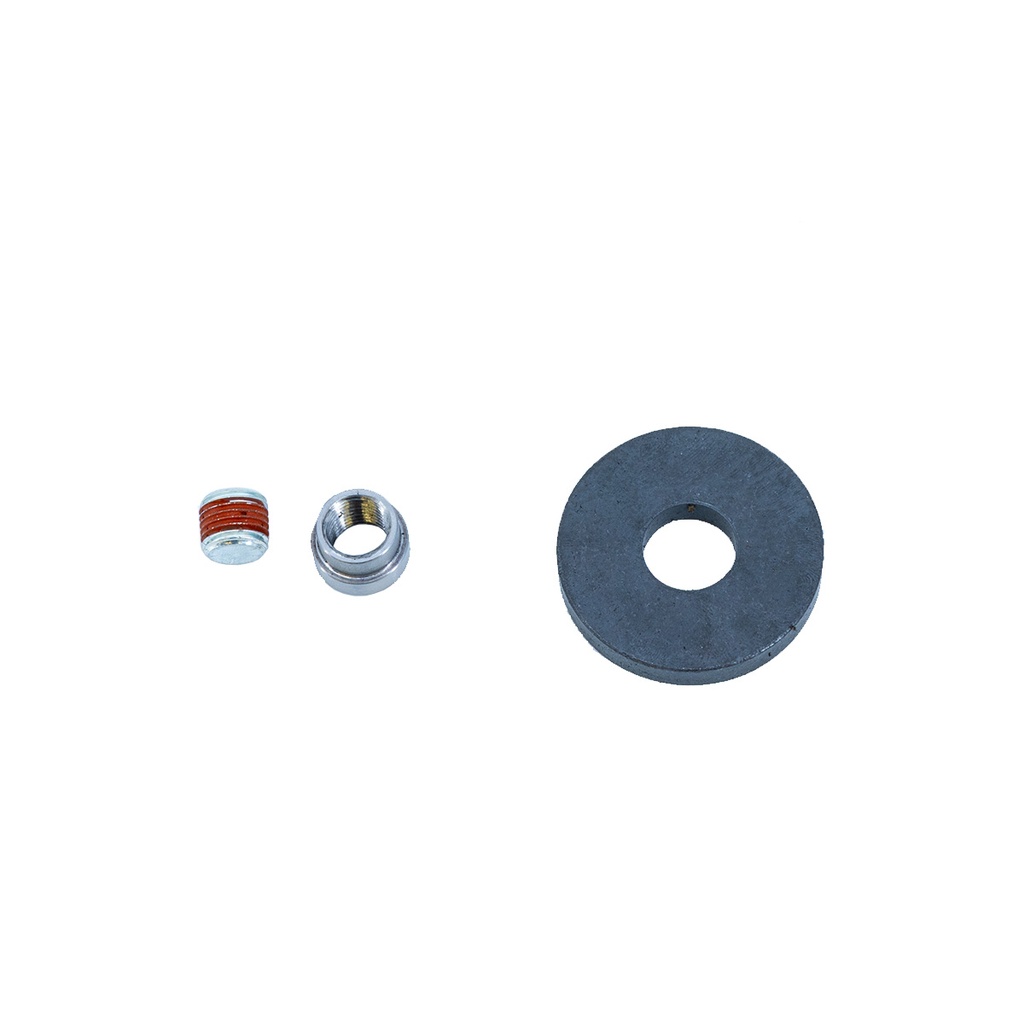

• 1/2 Drain Plug (1/4 NPT)
• Magnetic Ring Around Drain Plug
***1/4" and 1/2" lower half options. The only solid 1/2" 1-pc lower half 9" axle on the market
LM1 9" Fabricated Axle

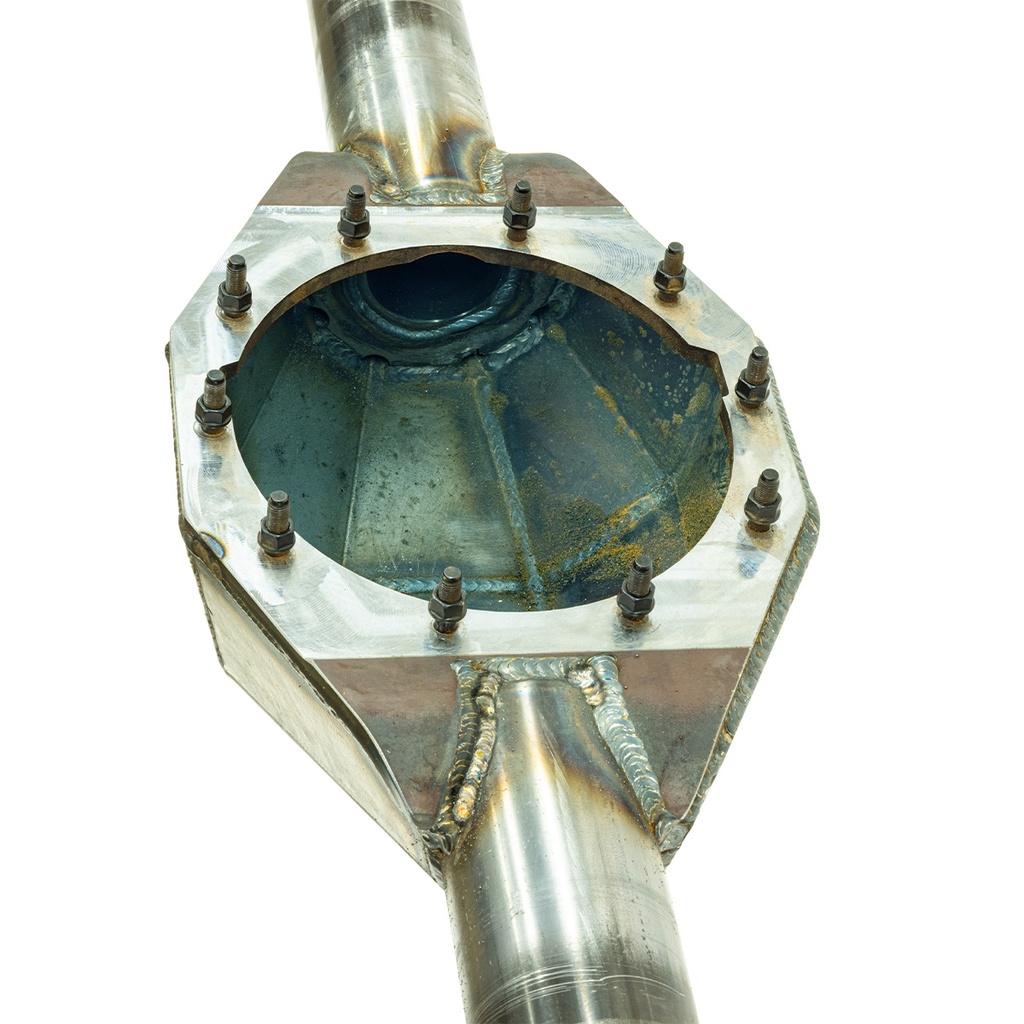

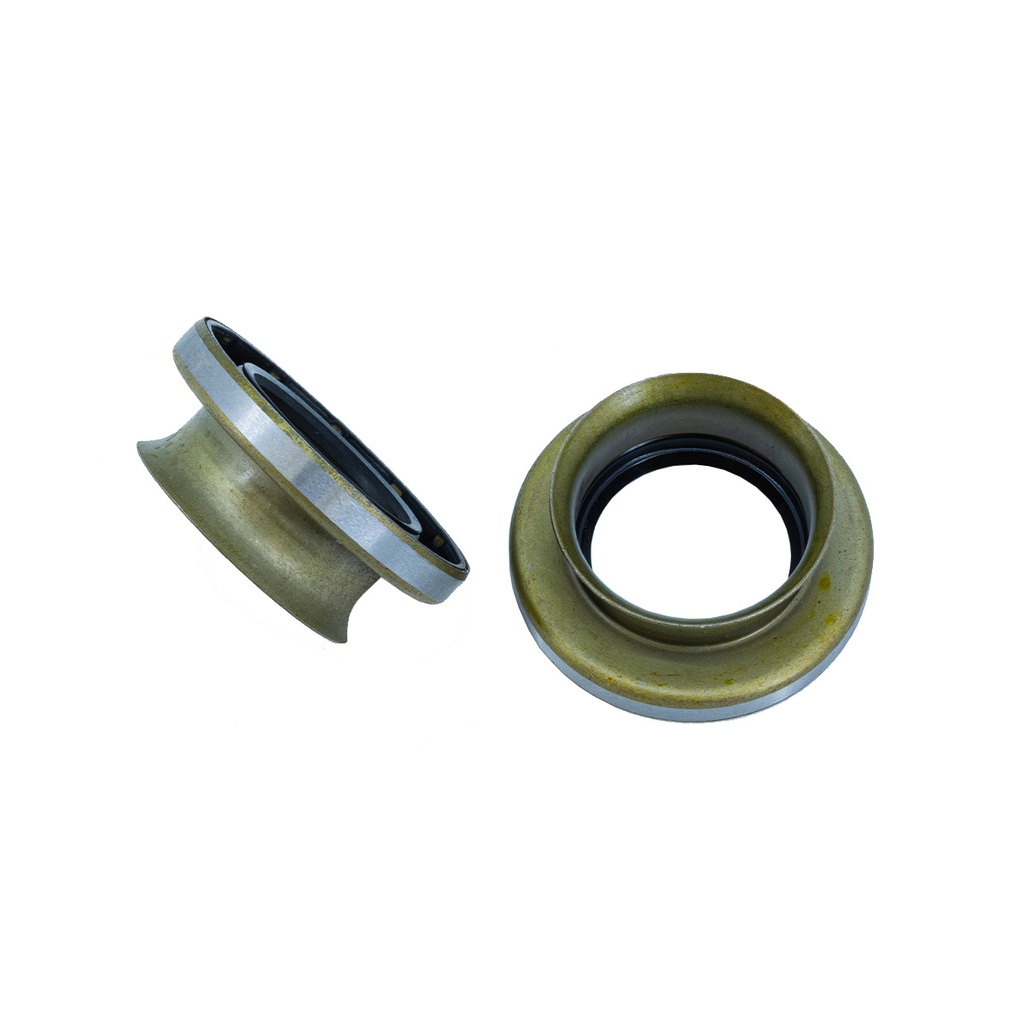

The LM1 fabricated 9” is built to withstand the toughest conditions and punishment you can put them in. We offer a 3 ½ inch outer diameter, 3/8 inch DOM axle tube. The center pumpkin bolsters a ½ inch face plate with optional 1/4 or 1/2 inch lower outer shell. The face plate is machined after fabrication to ensure perfect alignment with the outer bearings and seals to the third member on rear axles and alignment to inner seals on front axles. The machined face plate also provides a flat sealing and seating surface for the third member. For additional structural support, the axle tubes are internally gusseted to the pumpkin walls.
LM1 9" Offerings
· 3 ½ inch OD, 3/8 inch wall thickness axle tube - standard
· 1/2 inch CNC machined face plate - standard
· 1/4 or 1/2 inch lower pumpkin wall – optional
· 1/2 inch drain plug (1/4 NPT) with surrounding magnet ring – standard

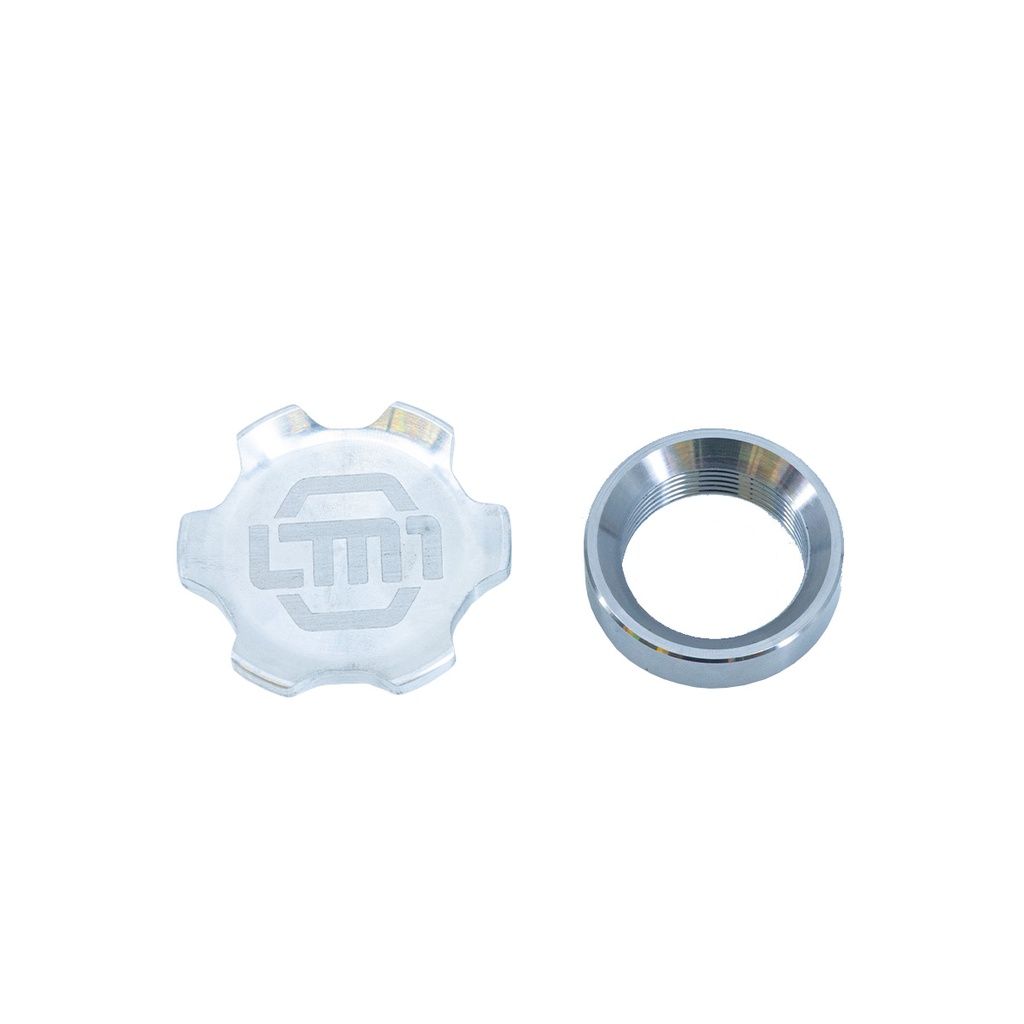

· Oil filling bung – optional
· Clearance for up to a 10” gear set – standard
· ARP hardware - standard
Our fabricated 9s take about two weeks to process, but lead-times are subject to change. Please Contact Us today to set up your build and order.
Custom Builds?
We have all the parts and recourses to make custom 9" axles, we're actually very good at it. Buggy guys are already all over this option. Give us a call, whatever you want we can make it!
